Ready for an FRC robot: the bore fits REV ½" rounded hex shaft, with SH-50 retaining-ring grooves on both faces and a splined washer under each ring so nothing walks along the shaft.

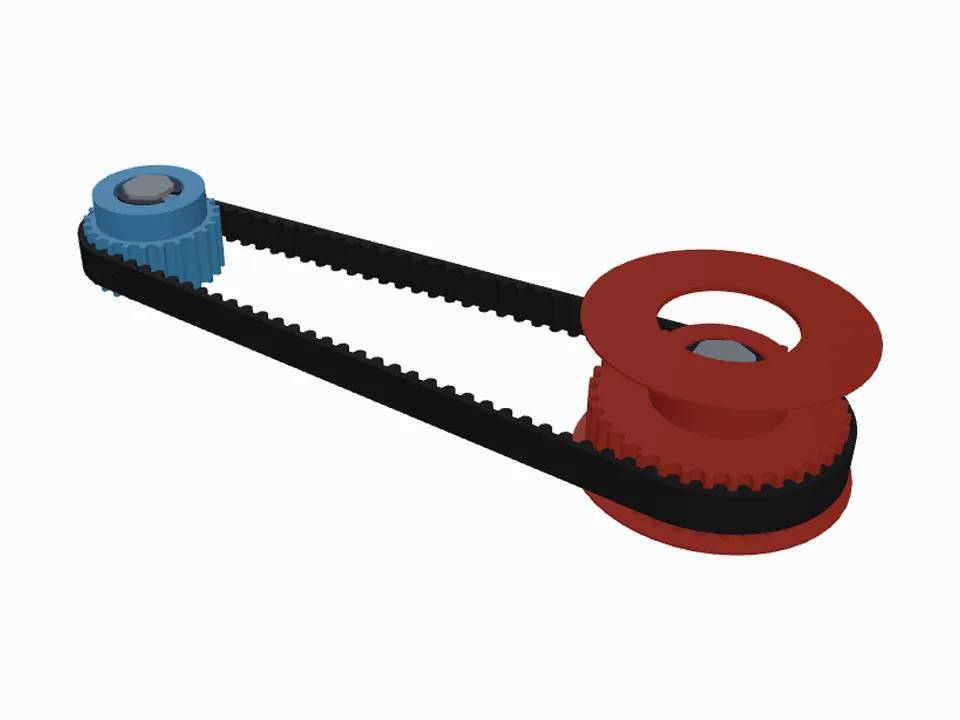

Using the CheapCAD Tools connector, design a two-pulley timing belt drive: HTD 5M belt, 24 and 36 teeth, about 160 mm between centres. Bore both pulleys for ½" rounded hex shaft (REV style: 12.7 mm across flats, 13.75 mm across corners) with inch retaining-ring grooves on both faces and a splined washer under each ring, and give each a hub 30 mm across and 8 mm tall. The 36-tooth pulley gets printed flanges, with its top flange printed as a separate part. Check the design, apply any Auto-fix it suggests, then export both pulleys as STL and give me the download link.
Paste it into Claude, ChatGPT or any AI app with the CheapCAD Tools connector, and it designs this drive with you, checks it and hands you the files. How to connect your AI.

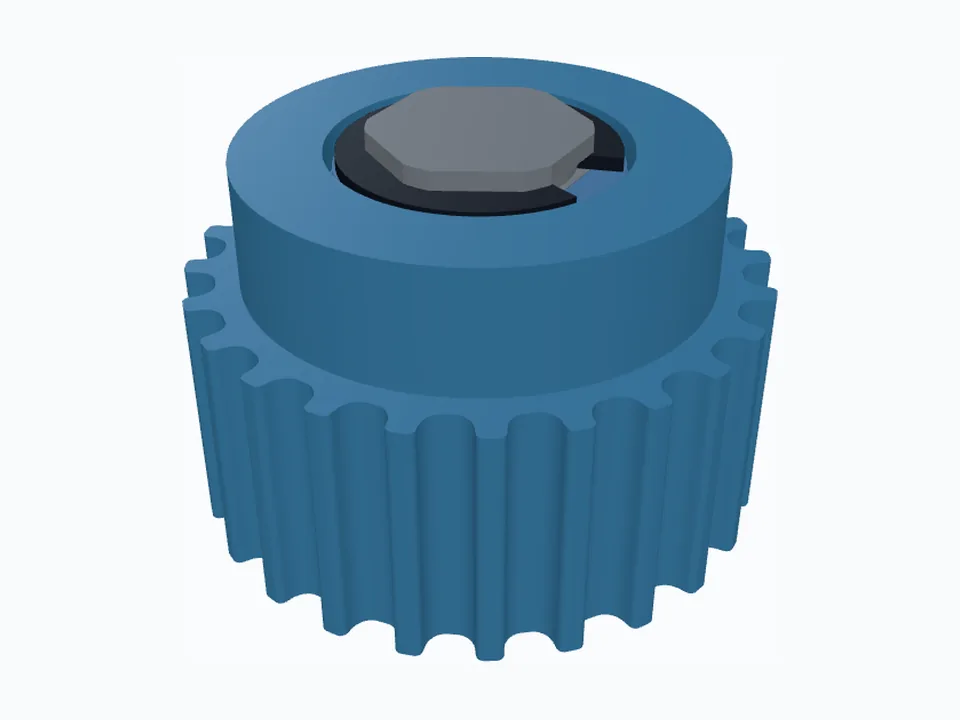

HTD-5M-24T.stl — pulley 1, 24 teethHTD-5M-36T-P2+flange.stl — pulley 2, 36 teethHTD5M-36T-3DP-upper-flange.stl — pulley 2's top flange, printed on its ownFree STLs are CC BY 4.0, printed size without print compensation. Open the design to change anything, tune the fit for your printer, or download STEP, DXF, SVG and the belt.
| Pulley 1 | Pulley 2 | |
|---|---|---|
| Pitch diameter | 38.20 mm | 57.30 mm |
| Outside diameter | 37.05 mm | 56.15 mm |
| Root diameter | 32.89 mm | 51.99 mm |
| Groove depth | 2.08 mm | 2.08 mm |
| Pitch line differential | 0.57 mm | 0.57 mm |
| Spline minor (the bore) | 12.76 mm | 12.76 mm |
| Spline major (its reach) | 13.80 mm | 13.80 mm |
| Sample shaft minor | 12.64 mm | 12.64 mm |
| Sample shaft major | 13.70 mm | 13.70 mm |
| Retaining ring | SH-50 / 5100-50 (1/2"), top and bottom face | SH-50 / 5100-50 (1/2"), top and bottom face |
| Ring counterbore diameter | 18.80 mm | 18.80 mm |
| Ring counterbore depth | 2.49 mm | 2.49 mm |
| Splined washer OD | 17.80 mm | 17.80 mm |
| Splined washer thickness | 1.50 mm | 1.50 mm |
| Belt width | 10.00 mm | 10.00 mm |
| Face width (belt + clearance) | 16.00 mm | 16.00 mm |
| Minimum face width | 16.00 mm | 12.00 mm |
| Flange outside diameter | — | 62.15 mm |
| Flange past the OD | — | 3.00 mm |
| Minimum flange height | — | 2.65 mm |
| Belt | 95 teeth · 475.00 mm | |
| Centre distance | 162.22 mm | |
| Drive ratio | 24 : 36 · 1 : 1.5 | |
Read from the generator's Dimensions panel for this design, which opens with no warnings.
